Trapezoid Series

Turnbuckles may be supplied in endless variations, in workload, in size, in take up, in locking, in connections, in type of thread.


Models

General

Standard turnbuckles allow a working load range varying from 1 to 160 tons in all possible combinations of jaws, round eyes and oval eyes. In standard design, the dimensions of the trapezoid thread turnbuckles are according NEN 3305, but for take-up because of our added lock nuts. However we can make any design or size you demand.

Design, specifications

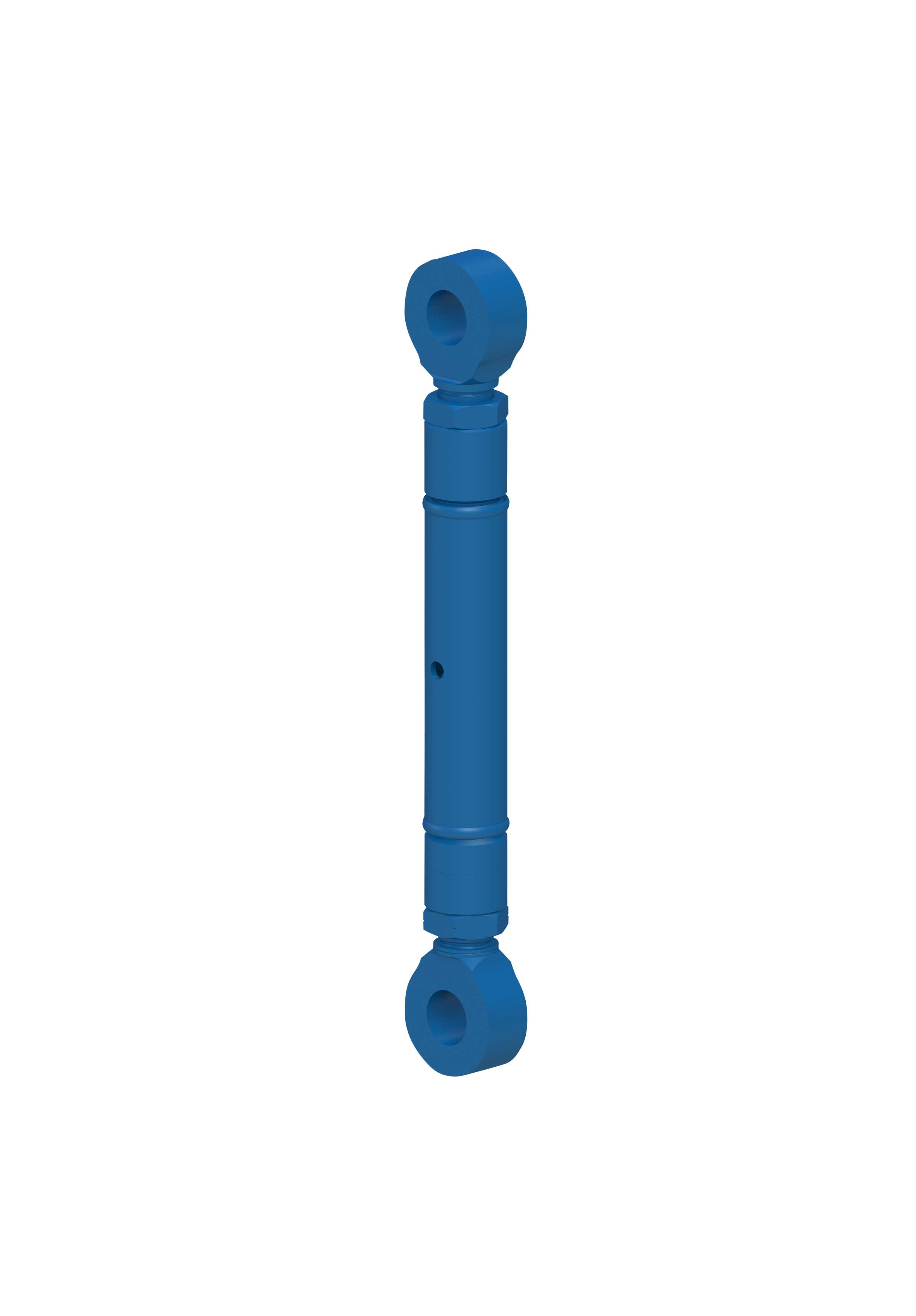

  • The standard finish of our Trapezoid Turnbuckles is blue. Other finishes are available on request.
  • Turnbuckles can be supplied in all combinations of jaws, oval eyes, round eyes and stub ends.
  • Standard all turnbuckles are supplied with locking nuts, but can also be supplied with locking plates, locking bolts and other locking devices.
  • Turnbuckles can be supplied with turning wheel or ratchet.
  • Sizes other than standard are possible.
